Little Diesel Single Ended Guitar Amp Build

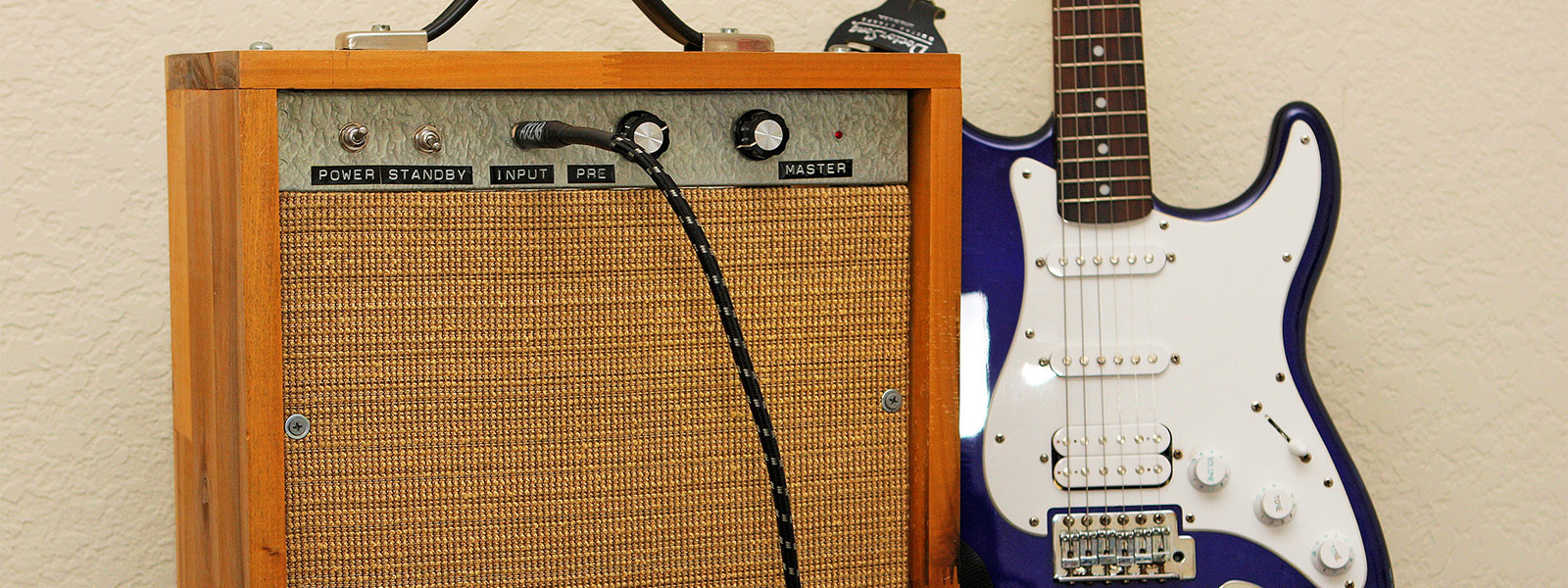

In 2007, I built this SE guitar amp for a friend. It started life with a Jensen speaker but a 10 inch Eminence ended up being the final speaker chosen.

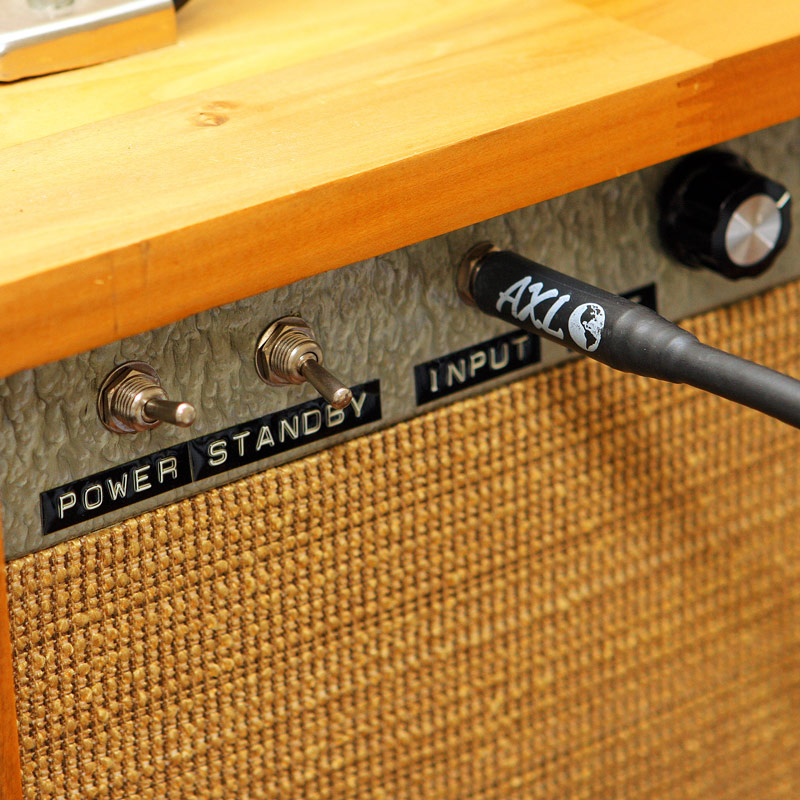

Massive, oversize power transformer, hand made poplar cabinet with 1/4 inch birch plywood sound board. Pre and Master Volume. 2 preamp tubes. No pedal needed for massive drive. No tone control, just simple, pure tube tone. Clean to thrashed.

Little Diesel Single Ended Guitar Amp Build | SeanRose.com

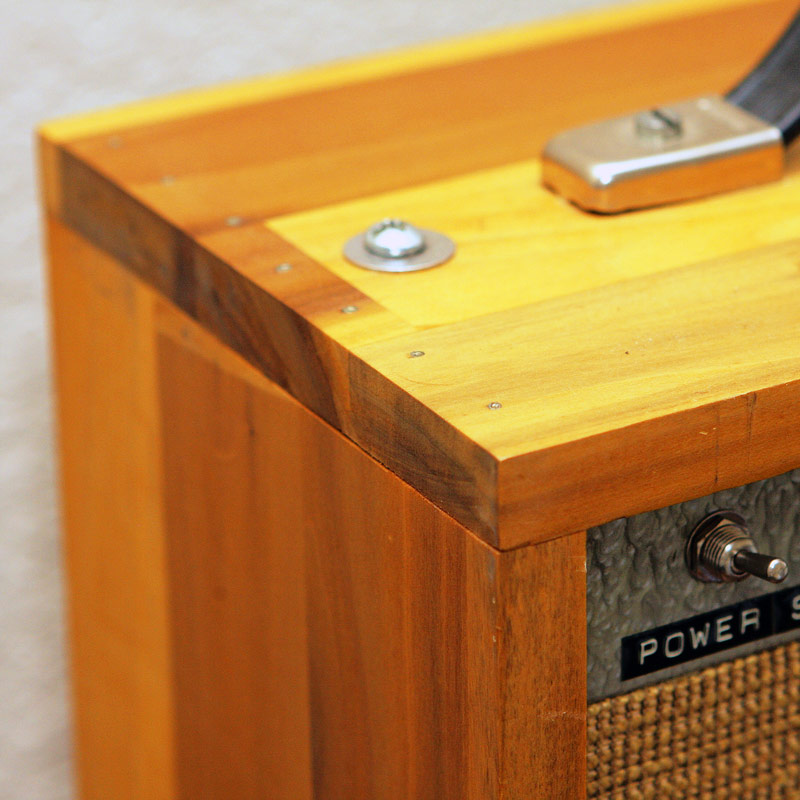

The poplar cabinet was glued and nailed together, this amp and its push-pull big brother have a great, yet very unique tone and sound.

Little Diesel Single Ended Guitar Amp Build | SeanRose.com
Little Diesel Single Ended Guitar Amp Build | SeanRose.com
Little Diesel Single Ended Guitar Amp Build | SeanRose.com
Little Diesel Single Ended Guitar Amp Build | SeanRose.com
Little Diesel Single Ended Guitar Amp Build | SeanRose.com

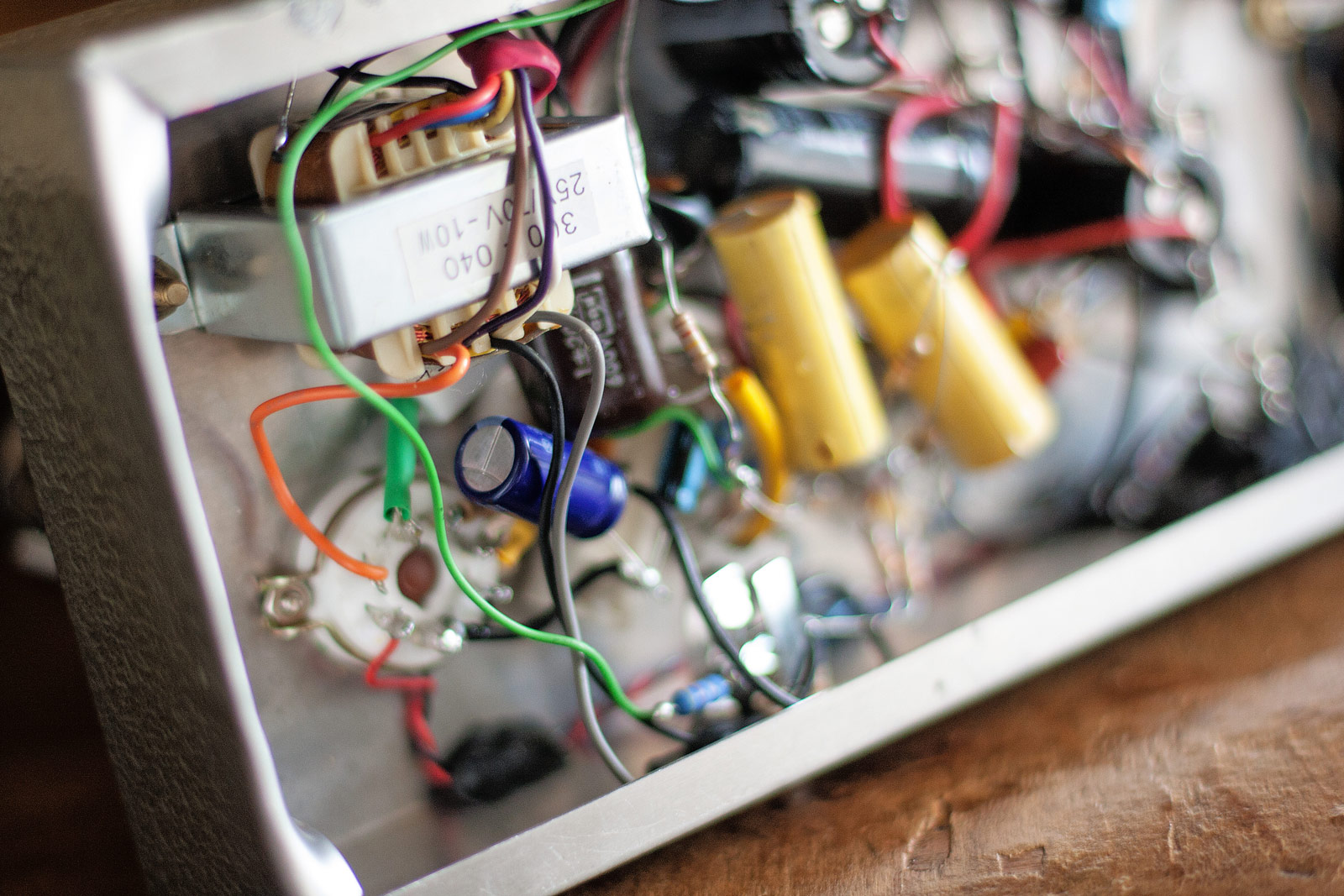

A look inside...

Little Diesel Single Ended Guitar Amp Build | SeanRose.com

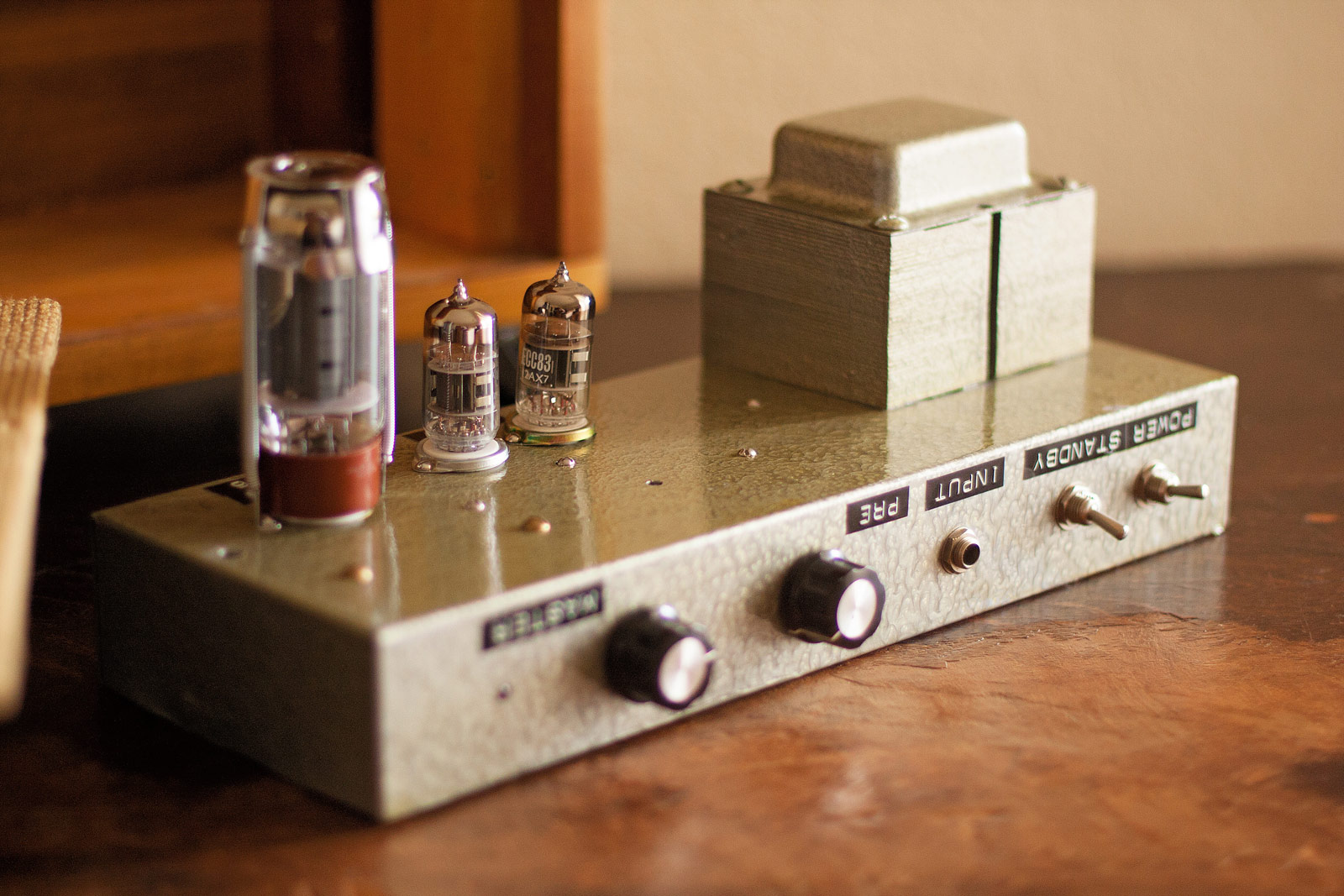

The completed chassis:

Little Diesel Single Ended Guitar Amp Build | SeanRose.com

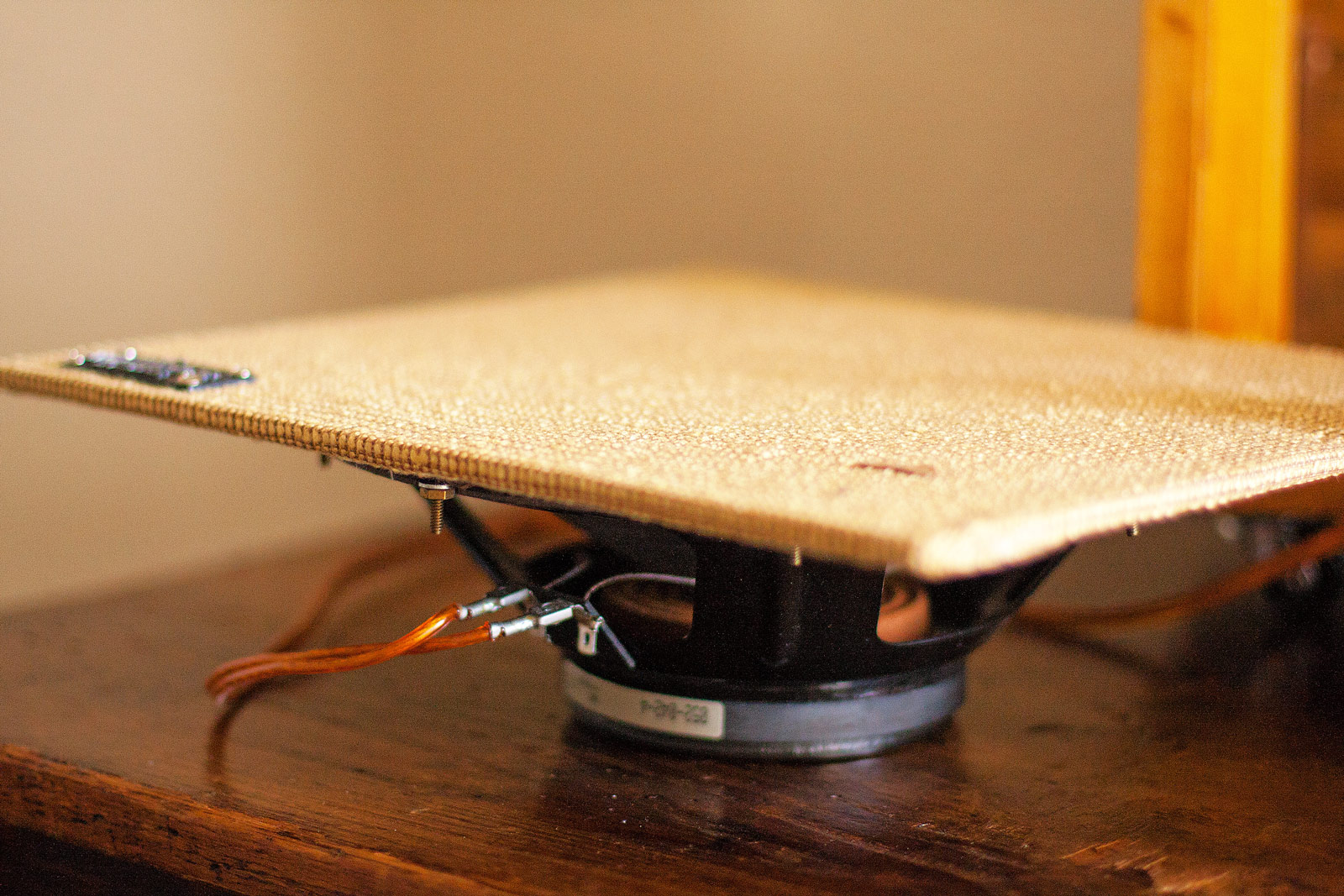

The Eminence speaker swap, with Eminence Inside badge:
